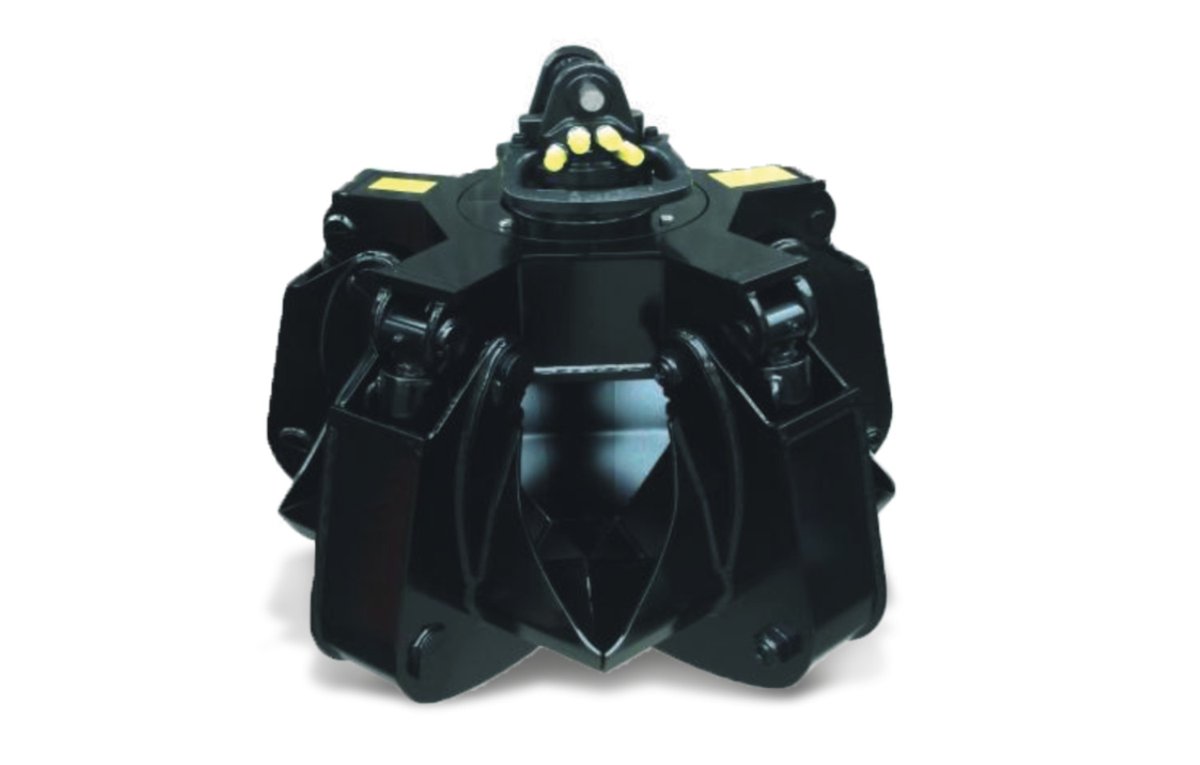

orange peel grab
built-in rotator
item number: MGT/RO-XXX
Abmessungen:
|
Typ |
Baggerklasse Tonnen |
Gewicht kg |
BD max. bar |
Ölfluss Lt/min |
Tragkraft Kg |
|
MGT4-250-GV6F MGT4-250-GRT503 |
3-7 |
306 320 |
250 |
50 |
2.500 |
|
MGT4-350-GV6F MGT4-350-GRT503 |
4-10 |
350 365 |
250 |
50 |
2.500 |
|
MGT4-500-GV6F MGT4-500-GRT503 |
4-10 |
462 475 |
250 |
50 |
2.500 |
|
MGT5-250-GV6F MGT5-250-GRT503 |
3-7 |
360 375 |
250 |
60 |
2.500 |
|
MGT5-350-GV6F MGT5-350-GRT503 |
5-12 |
420 435 |
250 |
60 |
2.500 |
|
MGT5-500-GV6F MGT5-500-GRT503 |
5-12 |
532 545 |
250 |
60 |
2.500 |
|
MGT6-280-GV6F MGT6-280-GRT503 |
5-10 |
435 450 |
250 |
70 |
2.500 |
|
MGT6-350-GV6F MGT6-350-GRT503 |
5-10 |
490 505 |
250 |
70 |
2.500 |
Mehrschalengreifer/Polypgreifer
· schwere Ausführung
· für Ladekräne und Forstkräne
· für Baggerklasse 3 bis 12 Tonnen
· mit Rotatoren
Abmessungen
|
TYP |
A |
B |
C |
E |
| MGT4-250-GV6F | 1.020 | 820 | 620 | 1.500 |
| MGT4-250-GRT503 | 1.020 | 880 | 680 | 1.500 |
| MGT4-350-GV6F | 1.050 | 920 | 700 | 1.840 |
| MGT4-350-GRT503 | 1.050 | 980 | 760 | 1.840 |
| MGT4-500-GV6F | 1.190 | 1.130 | 890 | 2.070 |
| MGT4-500-GRT503 | 1.190 | 1.190 | 1.190 | 2.070 |
| MGT5-250-GV6F | 1.020 | 820 | 620 | 1.500 |
| MGT5-250-GRT503 | 1.020 | 880 | 680 | 1.500 |
| MGT5-350-GV6F | 1.050 | 920 | 700 | 1.840 |
| MGT5-350-GRT503 | 1.050 | 980 | 760 | 1.840 |
| MGT5-500-GV6F | 1.300 | 1.130 | 700 | 2.070 |
| MGT5-500-GRT503 | 1.300 | 1.190 | 760 | 2.070 |
| MGT6-280-GV6F | 1.110 | 820 | 620 | 1.500 |
| MGT6-280-GRT503 | 1.110 | 880 | 680 | 1.500 |
| MGT6-350-GV6F | 1.050 | 920 | 700 | 1.500 |
| MGT6-350-GRT503 | 1.050 | 980 | 760 | 1.840 |
