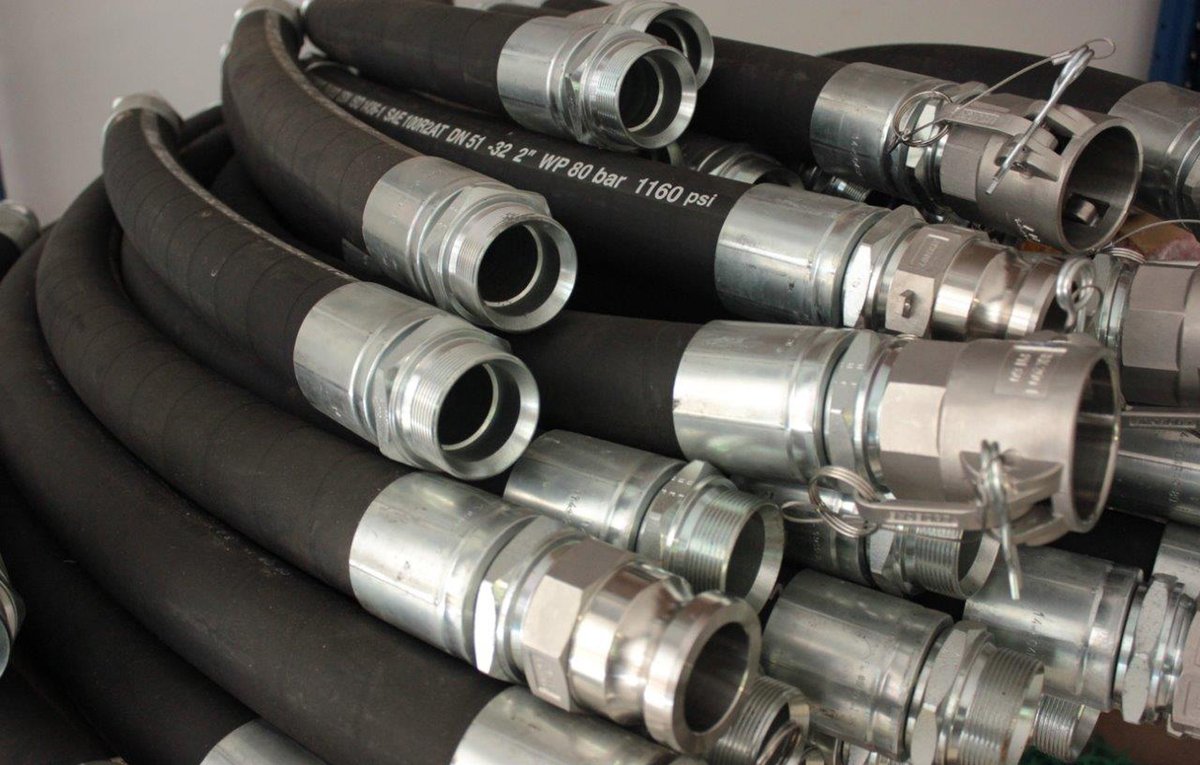

snow gun hose
Technical data:
Snow gun hose stable in shape 1 layer (high-strength steel wire mesh)
|
Item number |
inner diameter |
workingpressure |
burst pressure |
weight per meter |
|
SCHNEE1S40 |
38,10mm – 1 ½“ |
50 bar |
200 bar |
1,50 kg |
|
SCHNEE1S50 |
50,80mm – 2“ |
40 bar |
160 bar |
2,20 kg |
Snow gun hose stable in shape 2 layer (2 high-strength steel wire mesh)
|
Item number |
inner diameter |
workingpressure |
burst pressure |
weight per meter |
|
SCHNEE2S40 |
38,10mm – 1 ½“ |
90 bar |
360 bar |
2,30 kg |
|
SCHNEE2S50 |
50,80mm – 2“ |
80 bar |
320 bar |
3,00 kg |
Model:
Snow gun hose 2“ DN 50 + camlock 2”
|
Description |
color |
layers |
work pressure |
burst pressure |
|
High pressure hose DN50 KU2" |
black |
2 layers |
80 bar |
320 bar |
|
High pressure hose DN50 KU2" |
black |
1 layer |
40 bar |
160 bar |
Snow gun hose 1 1/2“ DN 40 + camlock 2”
|
Description |
color |
layers |
Work pressure |
Burst pressure |
|
High pressure hose DN40 KU2" |
Black |
2 layers |
90 bar |
360 bar |
|
High pressure hose DN40 KU2" |
Black |
1 layer |
50 bar |
200 bar |
Description:
Pressure carrier:
high-strength steel wire mesh (1 or 2 layers)
Inner liner material:
synthetic rubber black
Material outer cover:
abrasion resistant synthetic rubber black, ozone resistant and weatherproof
Temperature range:
-40 to up to 100° C, Water and water based liquids max. +70° C

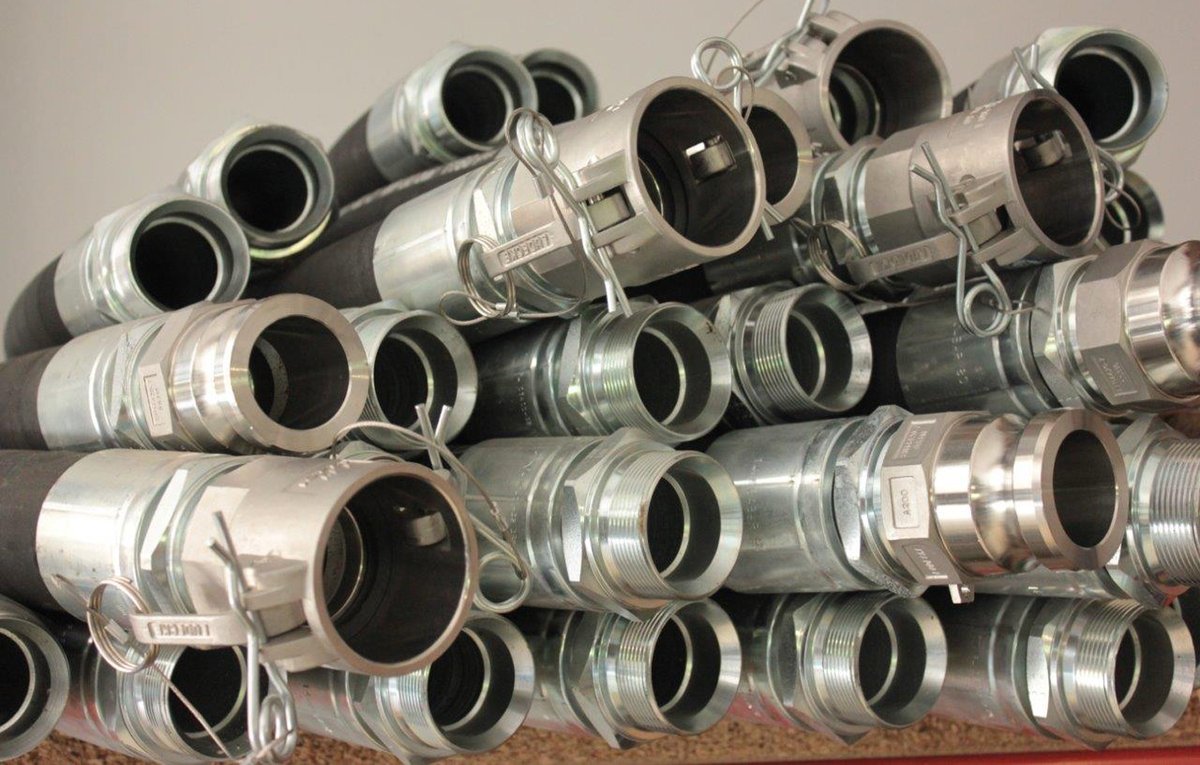

Fittings:
High pressure version, built to US-Mil-Standard (C-27487) or. DIN EN 14 420-7 sturdier housing than the regular camlock. Precision casting, arms secured with a safety clip, TÜV tested for 60 bar work pressure at 2,5 times safety (test pressure 150 bar) made for liquids. Installed with hydraulic crimped steel sleves.
