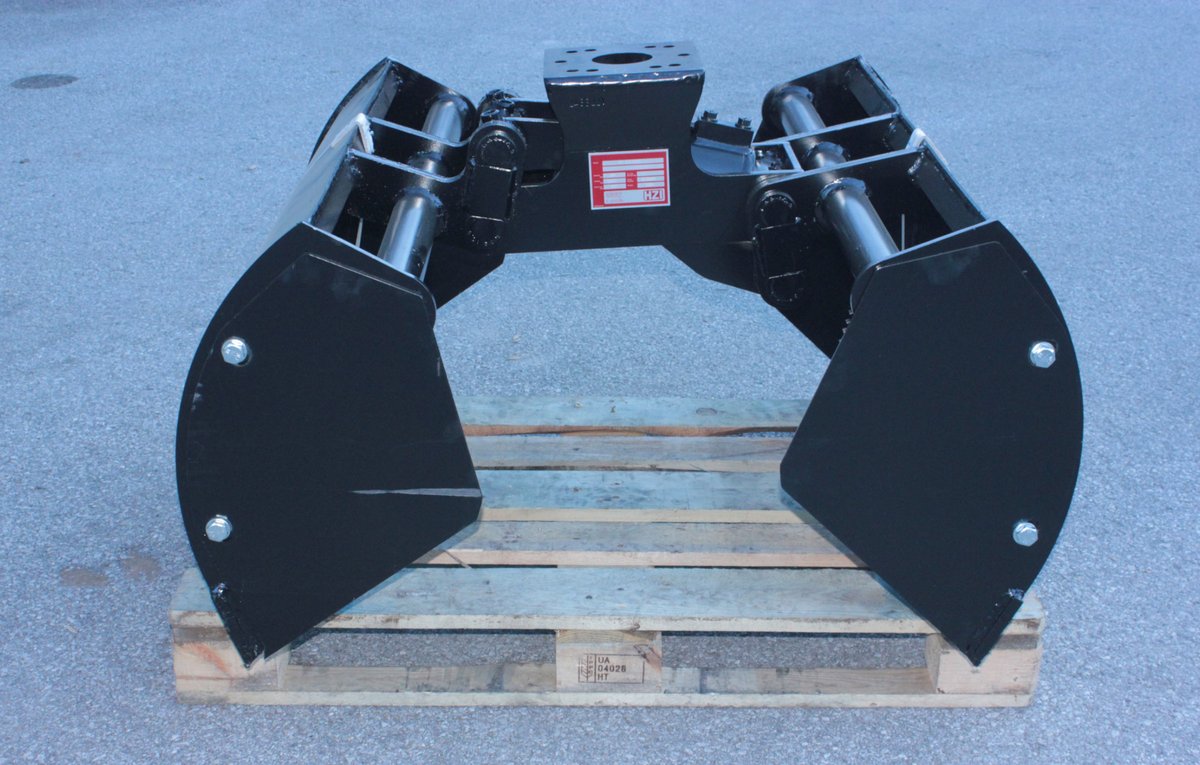

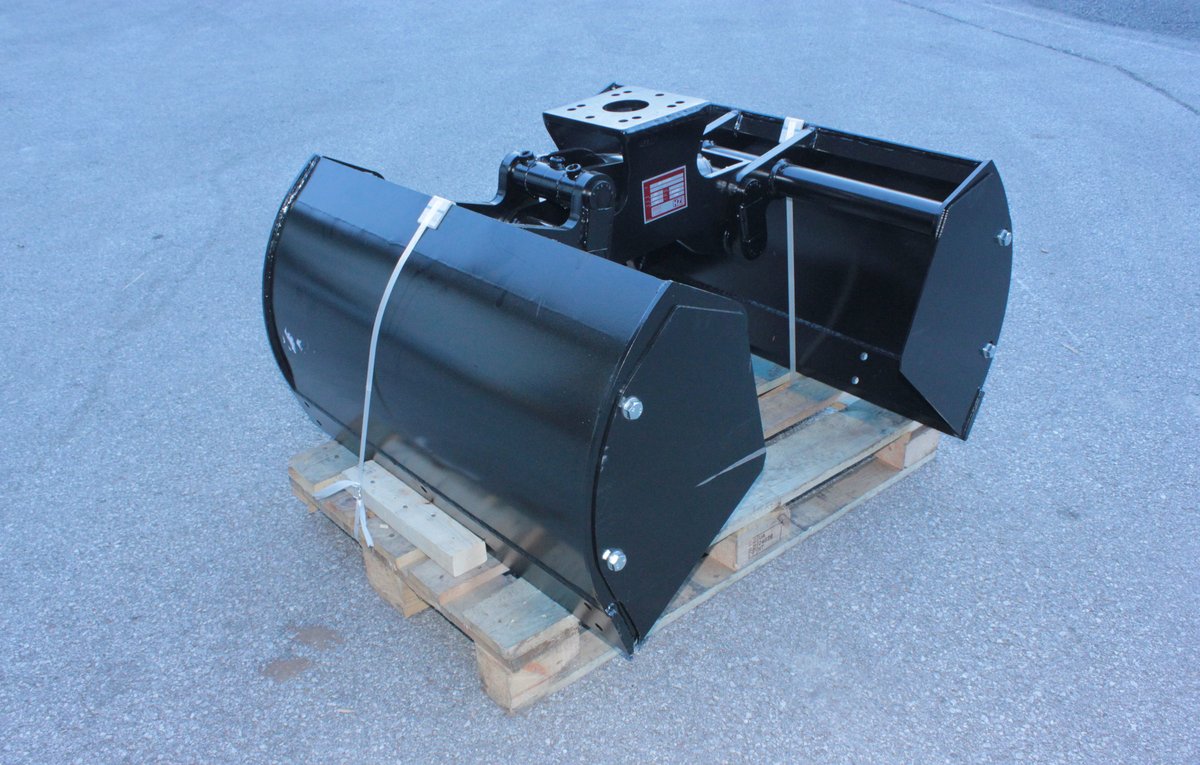

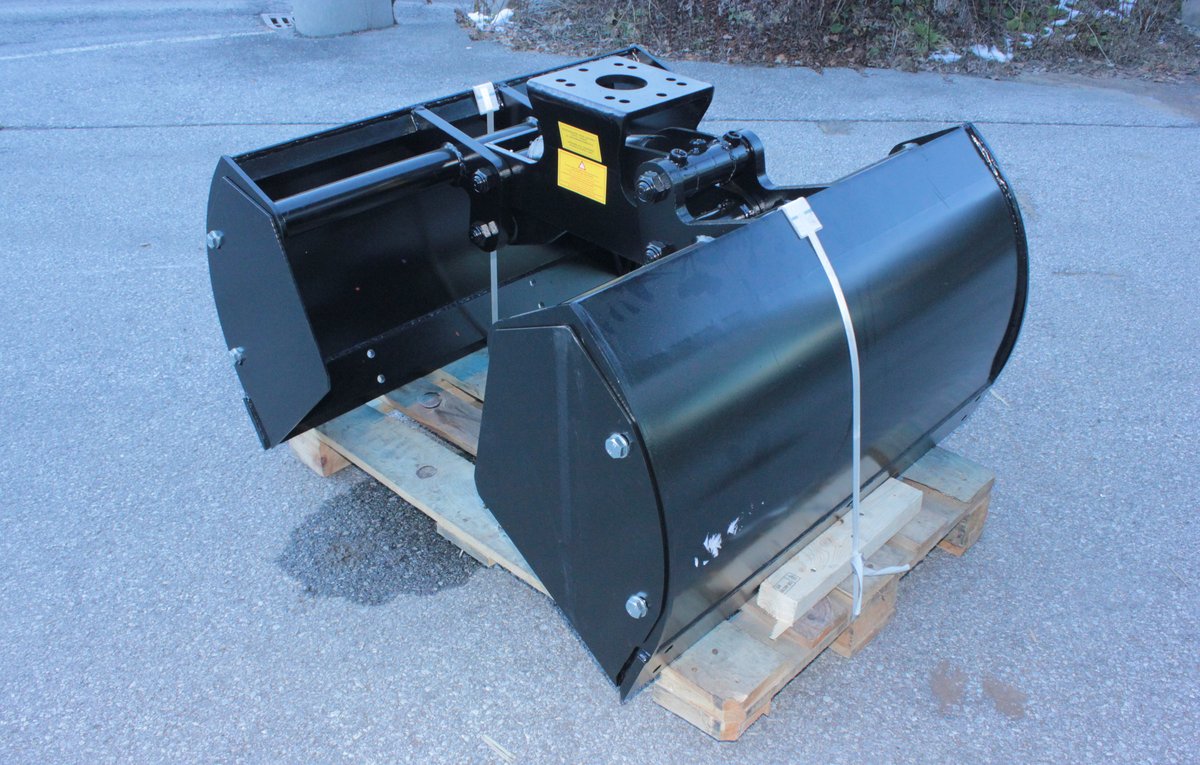

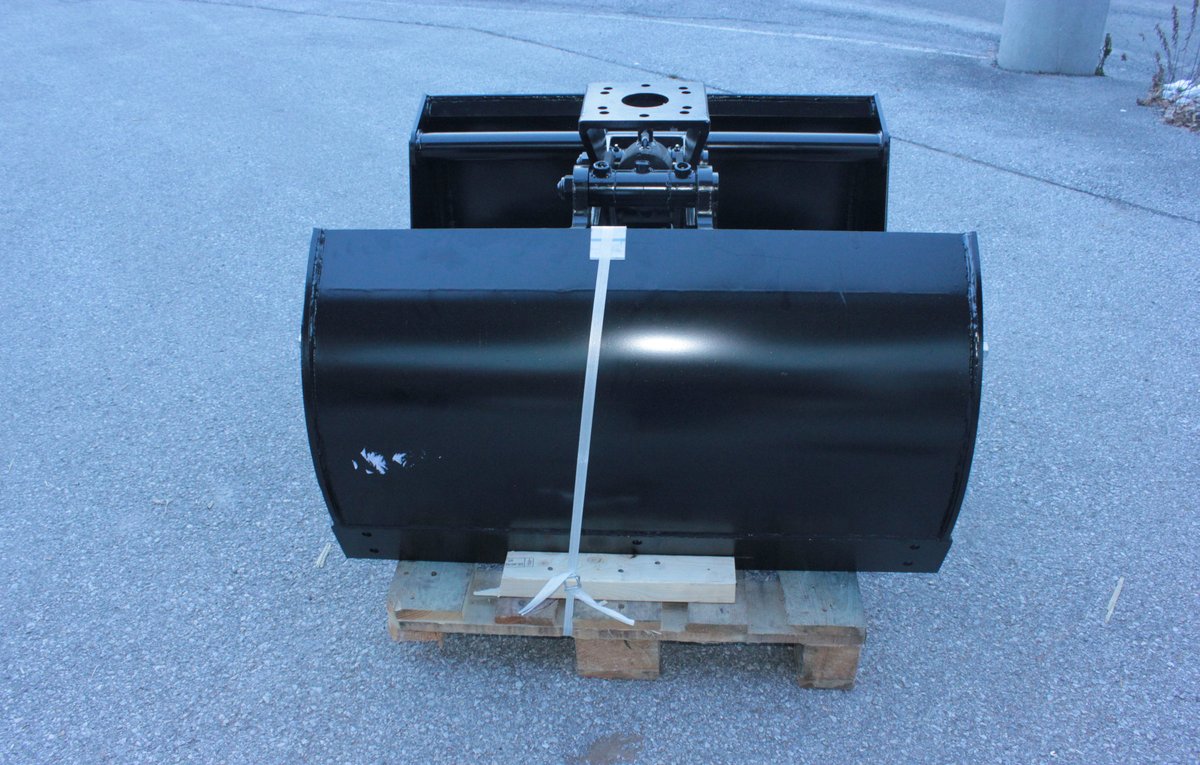

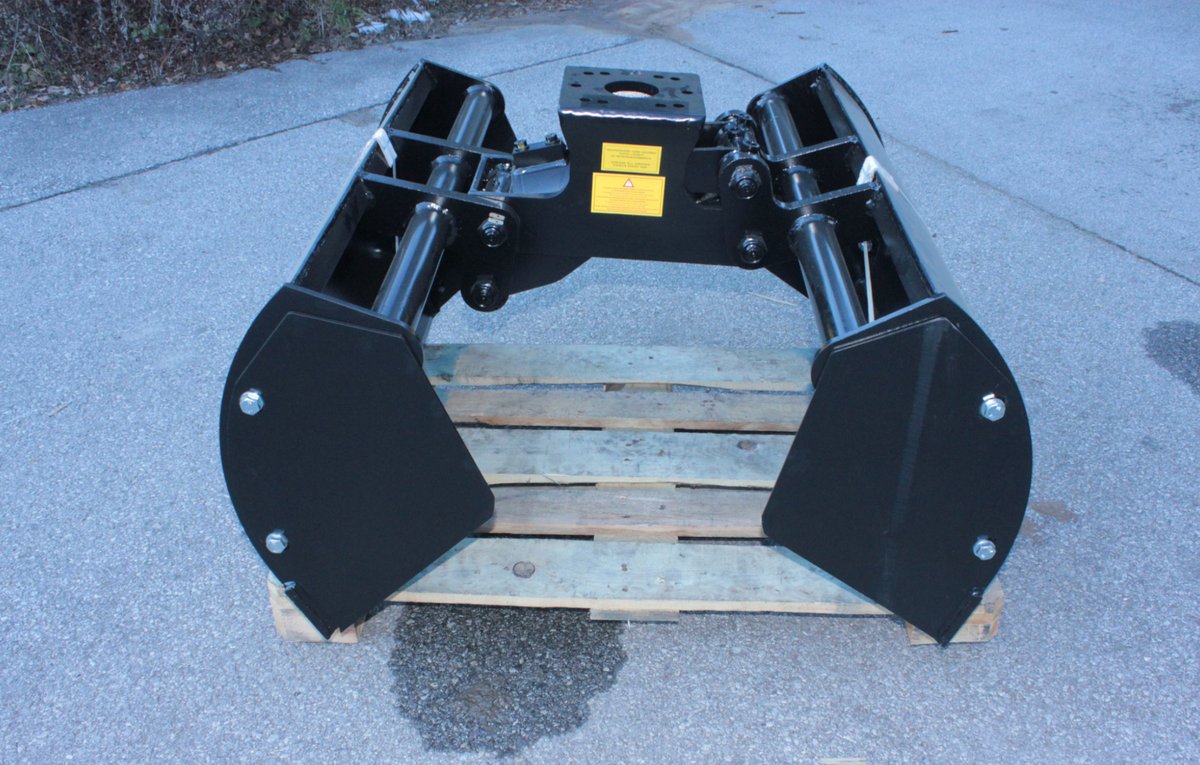

Clamshell bucket ZG-AS
with removable side walls
item number: ZG-AS
|
Typ |
Inhalt Liter |
Gewicht kg |
Baggerklasse Tonnen |
Druck max. bar |
Ölfluss Lt/min |
|
ZG-ASW53 |
53 |
67 |
1-1,5 |
200 |
20 |
|
ZG-ASW70 |
70 |
74 |
1-1,5 |
200 |
20 |
|
ZG-ASW87 |
87 |
81 |
1-1,5 |
200 |
20 |
|
ZG-ASW100 |
100 |
110 |
2-5 |
200 |
20 |
|
ZG-ASW125 |
125 |
120 |
2-5 |
200 |
20 |
|
ZG-ASW150 |
150 |
130 |
2-5 |
200 |
20 |
|
ZG-ASW175 |
175 |
140 |
3-5 |
200 |
20 |
|
ZG-ASW200 |
200 |
170 |
5-7 |
200 |
20 |
|
ZG-ASW225 |
225 |
180 |
5-7 |
200 |
20 |
|
ZG-ASW250 |
250 |
200 |
6-7 |
200 |
20 |
|
ZG-ASW310 |
310 |
210 |
5-7 |
200 |
20 |
|
ZG-ASW400 |
400 |
235 |
5-7 |
200 |
20 |
Abmessungen
|
TYP |
A |
B |
C |
D |
L |
| ZG-ASW53 | 585 | 730 | 510 | 1060 | 330 |
| ZG-ASW70 | 585 | 730 | 510 | 1060 | 430 |
| ZG-ASW87 | 585 | 730 | 510 | 1060 | 530 |
| ZG-ASW100 | 670 | 830 | 530 | 1200 | 340 |
| ZG-ASW125 | 670 | 830 | 530 | 1200 | 440 |
| ZG-ASW150 | 670 | 830 | 530 | 1200 | 540 |
| ZG-ASW175 | 670 | 830 | 530 | 1200 | 640 |
| ZG-ASW200 | 670 | 830 | 530 | 1200 | 740 |
| ZG-ASW225 | 670 | 830 | 530 | 1200 | 840 |
| ZG-ASW250 | 900 | 1030 | 700 | 1450 | 640 |
| ZG-ASW310 | 900 | 1030 | 700 | 1450 | 840 |
| ZG-ASW400 | 900 | 1030 | 700 | 1450 | 1040 |
